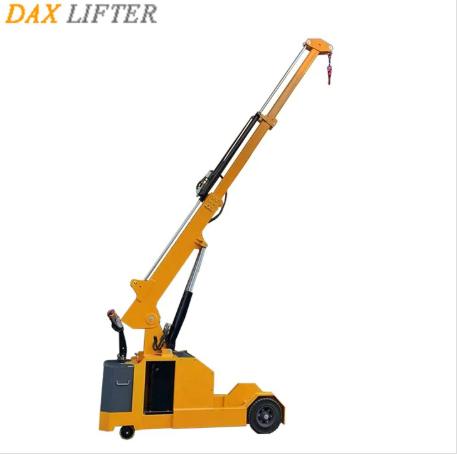

DAX LIFTER Mobile Hydraulic Crane Electric Self-Propelled Jib Crane
A compact mobile hydraulic crane with multi-section telescopic boom, electric self-propelled travel and hydraulic lifting. Rated capacity from 700 kg to 2000 kg, max lifting height up to 4950 mm.
One Crane, Full-Spectrum Lifting for Workshop and Warehouse
The DAX LIFTER mobile hydraulic crane, also known as an electric self-propelled hydraulic jib crane or portable hydraulic floor crane, combines a hydraulic lifting system, an electric travel drive and a multi-section telescopic boom in one compact material handling machine. The series covers six models — EFSC-25, EFSC-25-AA, EFSC-CB-15, EPFC900B, EPFC3500 and EPFC500 — with boom lengths of 1280+600+615 mm for the EFSC family and the EPFC900B, 1860+1070 mm for the EPFC3500 and 1860+1070+1070 mm for the EPFC500. Rated capacity in the fully retracted position ranges from 700 kg to 2000 kg (1200 kg for the EFSC-25 models, 2000 kg for the EPFC3500/EPFC500); with the first boom section extended the capacity is 400-600 kg, and with the second section fully extended 200-400 kg. Maximum lifting height reaches 3500-4950 mm, with the EPFC500 topping the range at 4950 mm. An electric travelling motor of 1.8-2.2 kW and a lifting motor of 1.2-1.5 kW power the machine, while the front, balance and large-diameter driving wheels (300x125 mm for the EPFC series) deliver smooth self-propelled movement even in narrow aisles.
- EFSC-25 / EFSC-25-AA — 1200 kg, 3520 mm, boom 1280+600+615 mm
- EFSC-CB-15 — 700 kg, 3500 mm, compact entry model
- EPFC900B — 900 kg, 3550 mm, manual 240° rotation
- EPFC3500 — 2000 kg, 3550 mm, boom 1860+1070 mm
- EPFC500 — 2000 kg, 4950 mm, boom 1860+1070+1070 mm
- Shared platform — electric self-propelled, hydraulic lifting
Engineered for Efficient Material Handling
Every model in the series is built around the same lifting philosophy: stable hydraulic power, precise telescopic reach and effortless electric travel.
Multi-Section Telescopic Boom
Boom sections extend step by step (1280+600+615 mm or 1860+1070+1070 mm), covering high-level lifting and close-quarter placement in one machine.
Electric Self-Propelled Travel
A 1.8-2.2 kW travelling motor drives large-diameter driving wheels. No manual pushing — the crane moves itself across the workshop floor.
Smooth Hydraulic Lifting
A 1.2-1.5 kW lifting motor powers the hydraulic system for controlled, precise placement of molds, engines and other heavy workpieces.
Compact and Agile
Front and balance wheel configuration keeps the turning radius small, so the crane moves easily through workshop aisles and between racking.
Manual 240° Rotation
The EPFC900B rotates 240 degrees by hand, enabling multi-angle lifting with fewer crane moves and faster job completion.
High Rated Capacity
Up to 2000 kg rated capacity in the retracted position, covering heavy lifting jobs such as engine swaps and die changes.
Full Specification Comparison
Six models, one platform. Compare boom length, rated capacity, lifting height, wheel configuration and motor power at a glance.
| Parameter | EFSC-25 | EFSC-25-AA | EFSC-CB-15 | EPFC900B | EPFC3500 | EPFC500 |
|---|---|---|---|---|---|---|
| Boom Length (mm) | 1280+600+615 | 1280+600+615 | 1280+600+615 | 1280+600+615 | 1860+1070 | 1860+1070+1070 |
| Capacity - Retracted (kg) | 1200 | 1200 | 700 | 900 | 2000 | 2000 |
| Capacity - Extended Arm 1 (kg) | 600 | 600 | 400 | 450 | 600 | 600 |
| Capacity - Extended Arm 2 (kg) | 300 | 300 | 200 | 250 | — | 400 |
| Max Lifting Height (mm) | 3520 | 3520 | 3500 | 3550 | 3550 | 4950 |
| Rotation | — | — | — | Manual 240° | — | — |
| Front Wheel Size | 2x150x50 | 2x150x50 | 2x180x50 | 2x180x50 | 2x480x100 | 2x180x100 |
| Balance Wheel Size | 2x150x50 | 2x150x50 | 2x150x50 | 2x150x50 | 2x150x50 | 2x150x50 |
| Driving Wheel Size | 250x80 | 250x80 | 250x80 | 250x80 | 300x125 | 300x125 |
| Travelling Motor (kW) | 2.0 | 2.0 | 1.8 | 1.8 | 2.2 | 2.2 |
| Lifting Motor (kW) | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 | 1.5 |
Note: — means not applicable. All specifications are based on the manufacturer's published technical data and may be updated without prior notice.
How to Choose the Right Model
EFSC-CB-15 / EPFC900B
- 700-900 kg retracted capacity
- 3500-3550 mm max lifting height
- Compact and cost-effective daily lifting
- EPFC900B adds manual 240° rotation
EFSC-25 / EFSC-25-AA
- 1200 kg retracted capacity
- 3520 mm max lifting height
- Three-section telescopic boom
- The most versatile choice for general workshop lifting
EPFC3500 / EPFC500
- 2000 kg retracted capacity
- Up to 4950 mm lifting height (EPFC500)
- Large-diameter wheels for heavy loads
- 2.2 kW travelling motor and 1.5 kW lifting motor
Where the Mobile Hydraulic Crane Works
Frequently Asked Questions
What is the maximum lifting capacity of the DAX LIFTER mobile hydraulic crane?
What is the maximum lifting height?
How does the boom extend?
Is the mobile hydraulic crane self-propelled?
Which models support rotation?
What are the motor power ratings?
What applications is this crane suitable for?
